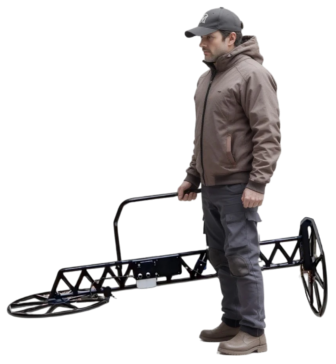

NEXUS PATHFINDER V3 - Two Box / Twin Box metal detector.
The Nexus Pathfinder is a well established twin box metal detector in our product range. The V3 is the very latest upgrade with brand new redesign to a
smaller, more mobile, lightweight and easier to use search coil system with two 20" search coils, with the new development no compromise in the extreme
depth capabilities of the detector.
The total weight of the new Nexus Pathfinder V3 design including batteries is 3.9 kg. The maximum mechanical length of the detector is 162 cm.
The two box metal detector redefines the terms depth and discrimination completely and have earned the name “iron buster” for its exceptional ability to
completely ignore iron objects such as wires and nails of size up to 15 cm. It’s non-motion system ensures peak performance on iron contaminated sites.
The mechanical construction is made out pure Carbon Fibre and it is designed to achieve extreme mechanical stability and very low weight simultaneously.

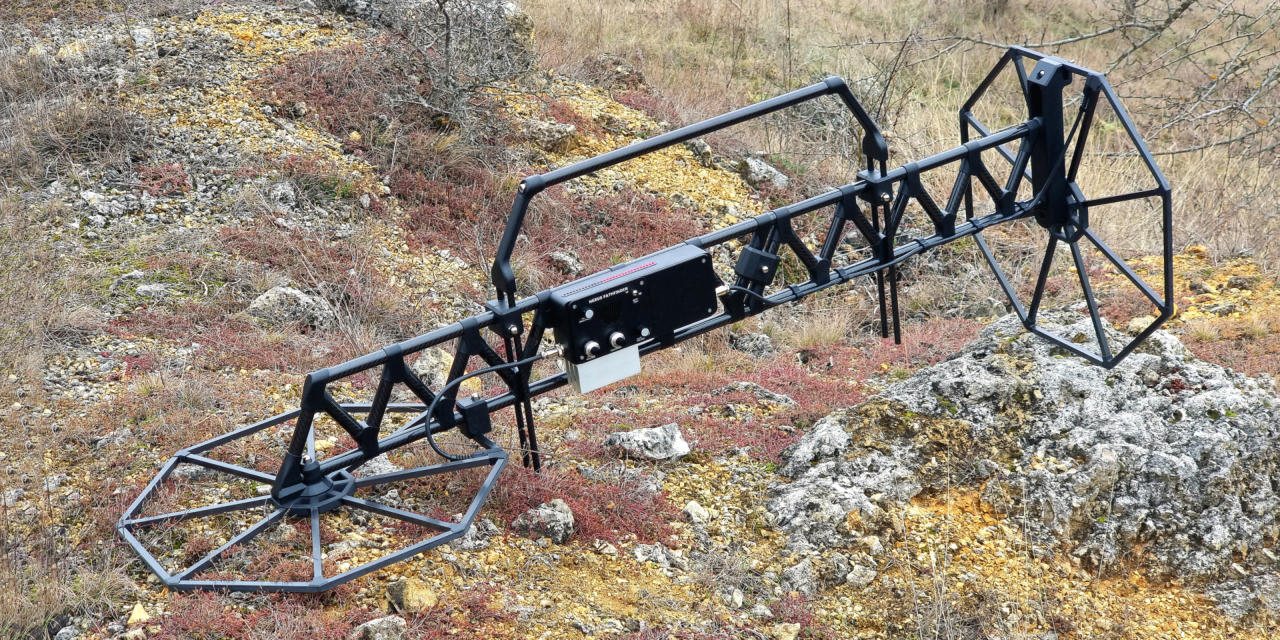

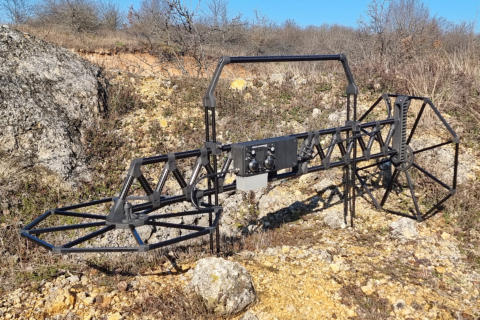

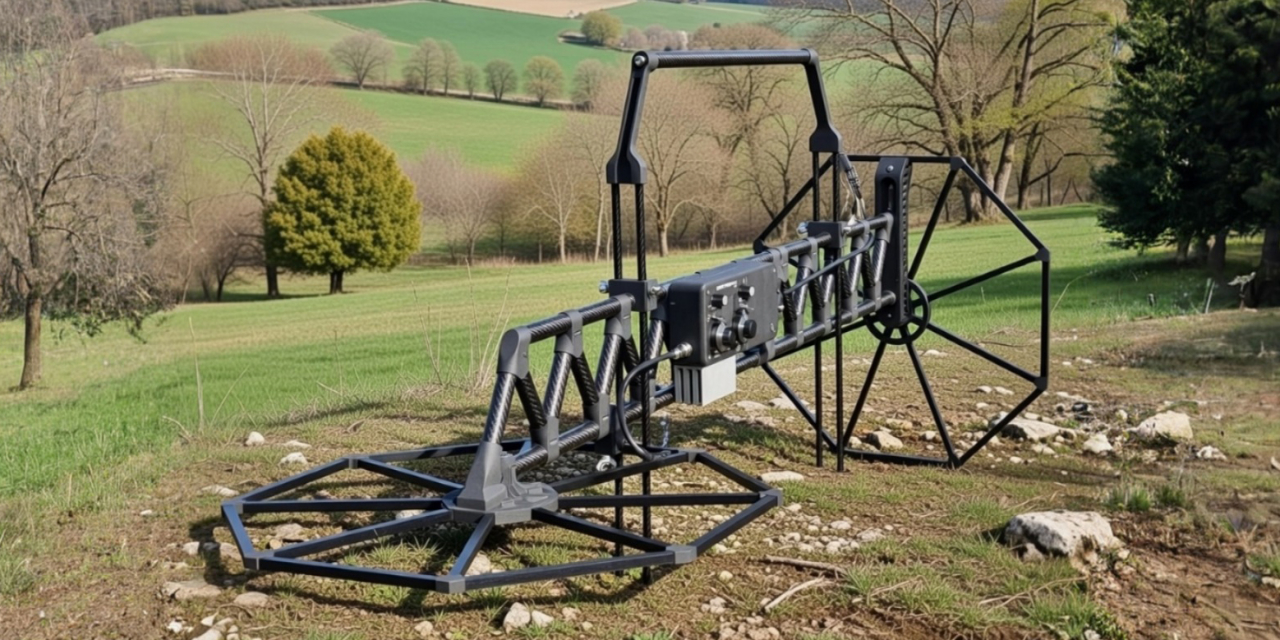

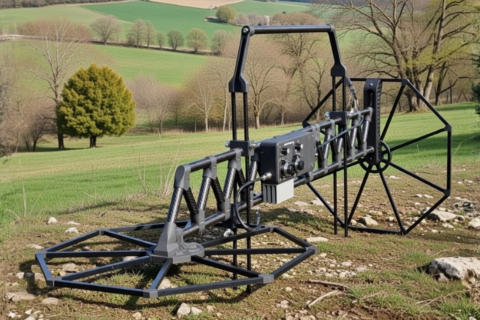

The complete detector consists of 4 separate parts - Two part holding frame, handle and two search coils. These parts fits together in a couple of minutes
and the unit is ready for use.
Manual adjustment of the settings allows fine tuning of this twin box for peak search efficiency of this non-motion metal detector.
TECHNICAL SPECIFICATION
● Search coil size - 20 inch hexagonal loops for both receiving and transmitting.
● Operating frequency - 5.7 kHz
● Weight of complete unit - 3.9 kg.
● Detector length - 162 cm.
● Collapsible modular construction for easy transport. The detector can be
disassembled to 4 basic components - two coils and two parts of the holding
frame.
● Battery - Lithium-Ion pack with aprox. 20 hours working time.

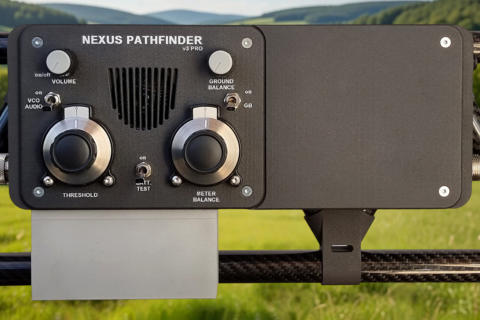

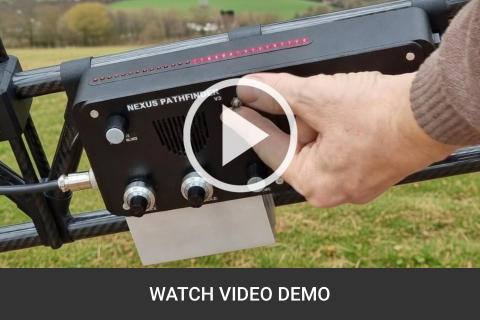

ELECTRONIC CONTROLS
● Power on/off combined with a Volume control.
● Threshold
● Meter Balance
● Meter Brightness
● Battery Test. Checks battery voltage from 12.3V to 16V.
CONNECTIONS
● TX coil connector
● RX coil connector
● Headphone socket
● On board loudspeaker
● Battery charger socket
● Internal Lithium - Ion battery pack, permanently installed in the control box.
● Smart Lithium-Ion battery charger is included in the set.
TARGET IDENTIFICATON
FEATURES
Large hoards
Scattered hoards
Large gold chunks
Helmet, sword, armour
Lead coffin
Other large objects
Small jar of coins
Single, small gold nuggets
Single, small jewellery
Single finger rings
Single coins
RECOMMENDED TARGETS
Chart Results: - Good - Ok - No
Strong carbon fiber construction.
Speedy ground coverage, time efficient search
Superb discrimination
Stable performance on highly mineralised soil.
Unrivaled depth penetration in iron contaminated sites
Light-weight for size, well balanced weight distribution.
Visual discrimination with LED technology
UV and weather resistant
Long-lasting battery power - Litium ION battery pack included
SET UP PROCEDURE
1. Turn the metal detector on from the Volume control and
set the audio volume to a comfortable level.
2. Lower both coils of the detector as close as possible to
the ground.
3. While the detector is close to the ground, set the
Threshold to a low audible level.
4. Set the Meter balance so that the first led is on.
5. You are ready to go.
Visual
The LED meter indicates presence of non-ferrous metal targets.
Sound
The VCO tones sounds high for non-ferrous metals and low for ferrous (iron).
The Pathfinder V3 is capable to completely ignore iron objects such as wires and
nails of size up to 15 cm.
